Overview of ESCAM Diamond QF506 Wireless IP Camera CCTV 1/4 Inch CMOS 720P

Feel Safety and Secured

ESCAM QF502 memiliki kualitas perekaman video Full HD 720P yang menyajikan gambar dengan jelas ketika siang maupun malam hari. ESCAM QF502 memiliki fitur-fitur seperti motion detection, push notification, night vision yang membuat cctv ini sempurna untuk mengawasi rumah Anda.

Features

Two Way Audio

Dapat berkomunikasi 2 arah melalui cctv dan smartphone.

Email Alert

Escam dapat mengirim notifikasi berupa email saat kamera mendeteksi pergerakan mencurigakan dirumah Anda.

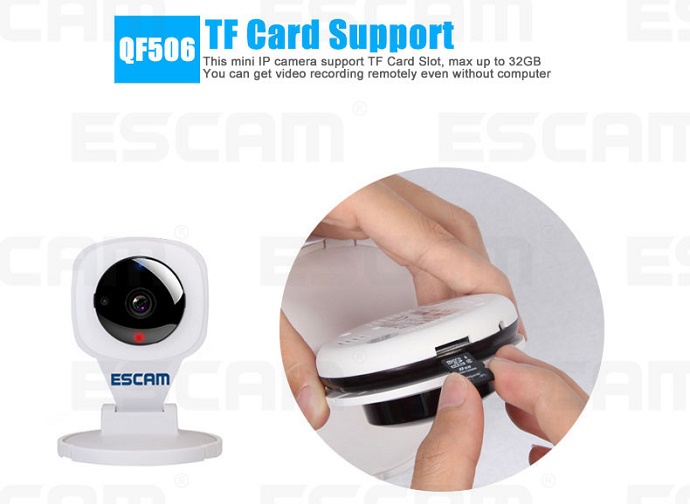

TF Card up to 32GB

Dapat menggunakan memory Micro SD hingga kapasitas 32GB. Dengan ini Anda dapat menyimpang hasil rekaman cctv di memory ini.

Multi Platform Support

Dapat dihubungkan dengan berbagai jenis perangkat seperti Android, iOS, laptop dan PC.

1MP HD 720P

Sensor kamera dapat merekam dengan kualitas HD hingga 1280 x 720. Dengan resolusi ini Anda akan mendapatkan kualitas gambar yang jelas dan jernih.

Support Day and Night

Memiliki sensor nightvision sehingga dapat digunakan untuk memonitor situasi diruangan gelap.

Detail Specification

	Model	ESCAM Diamond QF506
Features	Type	Parameters
System	System security	Account, password authority management
	DDNS	No need DDNS, support dynamic IP
	Mobile view	HD mobile view, dedicated software for Iphone, Android (IOS4.3 / Android OS 2.3 above)
	Local memory	Support up to 32G TF Card, loop recording
	P2P	Plug & Play technology applied. 99% penetration rate.
	P2P	Only three steps to view image.
	Server cluster	Global PnP smart server cluster applied, high stability
	UID Technology	UID scan technology applied, easy to operate, and highly confidential.
Video	Compression Format	H.264 , 1.0 megapixel
	Frame rate	1~30fps
	Resolution	720P(1280 x 720) / VGA(640×480) / QVGA (320×240)
	Image sensor	1/4 CMOS
	Minimum Illumination	2.5Lux( color mode), 0.3Lux (B/W mode)
	SNR	≥39dB
	Electronic shutter	1/50s(1/60s)-1/100, 000s
	CMOS	support AWB, AGC, BLC
	Lens/Viewing Angle	2.8mm @F1.4 / 75.6?
Nightvision	IR-CUT	Dual IR-CUT Filter
Nightvision	Effect	1pcs 850nmΦ5mm IR LED, IR Distance : 5m
Audio	Encode formats	AMR / 32kbps
	Input	1 Channel Line in -48dB Microphone
	Output	built-in speaker (8Ω1W)
	Network Protocol	TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, NTP, UPnP, P2P
	WIFI	WIFI 802.11 b / g / n
	IP address	dynamic IP
	visitors	Support 4 online visitors viewing simutaneously
Others	Power Comsumption	DC5 ± 0.3V
	Temperature	-10~50 °C
	Humidity	95%RH
	Product Weight	100g
	Gross Weight	180g
	Product size	110 x 85 x 85mm (L x W x H)
	Package size	150 x 90 x 85mm (L x W x H)
Alarm	Motion Detection	Support motion detection/one channel input trigger
	Alarm detection	External trigger input action: connected / disconnected
	Alarm detection	External trigger input action: closed / disconnected
	Alarm Action	snapshot and email
System	system configuration	Win2000 / XP / Vista / Win7 / iPhone ios4.3 / Andorid 2.3 above
Certification	Certificate	ISO FCC CE RoHS
