Overview of ESCAM Cat QF300 Wireless IP Camera CCTV for Android and iOS 1/4 Inch CMOS
Feel Safety & SecuredESCAM Cat QF300 dapat menghasilkan gambar kualitas tinggi dan detail dengan memanfaatkan memanfaat sensor CMOS. Dengan fitur Peer to Peer, kamera ini dapat dihubungkan langsung dengan smartphone Anda untuk monitoring secara langsung.
Features
|
3.6mm Wide Angle Lens
Kamera ini memiliki lensa 3.6mm wide angle, sehingga kualitas gambar sangat detail dan jernih. |
|

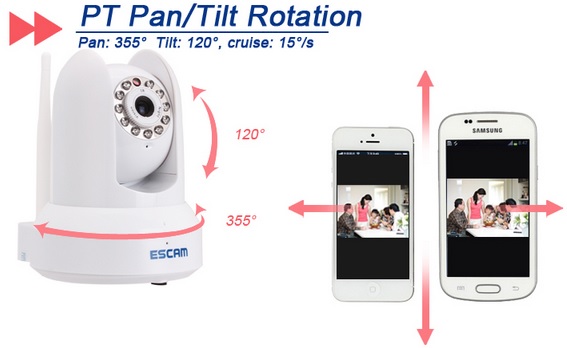

PT Pan / Tilt Rotation
Anda dapat mengatur posisi lensa kamera ini sesuai dengan yang Anda butuhkan melalui smartphone Anda. |
|
Two Way Audio
Suara dapat secara langsung ditransmit pada waktu yang sama. Pada
bagian mic, Anda dapat menerima dan berbicara dengan bagian monitoring,
begitu juga sebaliknya. |
|

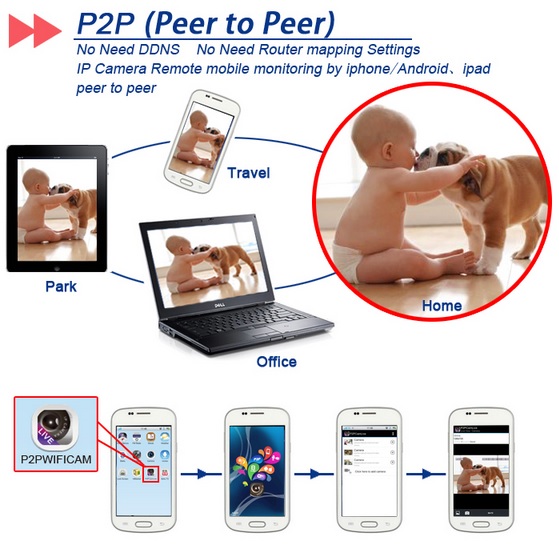

P2P
Dengan fitur Peer to Peer, kamera ini dapat dihubungkan langsung dengan smartphone Anda untuk monitoring secara langsung. |
Detail Specification
| Model : ESCAM Cat QF300 | ||
| Features | System security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP. | |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3 Android OS 2.3 above) | |
| Local Storage | support up to 32GB MicroSD card ?24-hour loop recording. | |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. | |
| PnP | Plug & Play,99% penetration rate, Easy to setup: | |
| 1. connect the network cable and power adapter, | ||
| 2. 2.install APP, scan UID code to add camera. | ||
| 3. 3,Click online camera to view the camera. | ||
| Sever cluster | Using Amazon Cloud PnP servier cluster, intelligent application | |
| and super stable | ||
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. | |
| Super Client | 1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , | |
| centralized surveillance, remote record and playback, alarm email ect. | ||
| System | OS | Embedded Linux OS |
| Control protocol | ONVIF 2.0 protocol, high interoperability | |
| Video coding | Multi stream 720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture | |
| Bit Rate | CBR/VBR, output bit rate range(128)4096kbps | |
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | |
| Video | Compression Format | H.264 baseline profile@levels:3.1/Motion-JPEG |
| Frame rate | 30fps/24fps/720p | |
| Resolution | 720P(1280*720), VGA(640*480), QVGA(320*240) | |
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. | |
| Sensor | 1/4 720p Progressive CMOS sensor | |
| Minimum illumination | 0.8Lux/F1.4?colourful model ?,0.3Lux/F1.?B&W mode? | |
| SNR | ≥39dB | |
| IR control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. | |
| IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. | ||
| Electronic shutter | 1/50s(1/60s)-1/100, 000s | |
| CMOS | support AWB, AGC, BLC | |
| Lens/viewing angle | 3.6mm@F1./56.14 | |
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 10pcs 850nmΦ5mm LED,10m IR distance |
| Audio | Compression format | ADPCM/32kbps |
| Input | Internal Microphone | |
| Output | 1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) | |
| P/T | P/T | Pan:355°,Tilt:120° |
| Preset Postion | suppor up to 15 preset postions | |
| Network | network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP?P2P,etc. | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| IP address | Dynamic IP and static IP address | |
| WIFI | WIFI 802.11 b/g/n | |
| Others | housing material | engineering plastics |
| Application environment | Indoor | |
| Rated Voltage | DC5±0.3V | |
| Temperature | -10~50 °C | |
| Power consumption | rated power 3.5W(IR opening )/maximum power 7W(P/T working ) | |
| Package size | 195x140x130mm (L×W×H) | |
| Weight | Gross Weight : 600g Note: in kind prevail | |
| Product Net weight | 310g | |
| Product SIZE | 105x105x135mm(L x W x H) | |
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. | |
| Alarm | Motion Detection | Support motion detecting |
| System | System configuration | /XP,Vista,iPhone iOS4.3,The android version 2.3 or higher |
| Requirement | ||
| Certificate | Certificate | ISO FCC CE RoHS |
| Only for reference | ||
Package Contents
Barang-barang yang Anda dapat dalam kotak produk:- 1 x Escam Camera
- 1 x Mount
- 1 x Accessories
- 1 x USB Cable
- 1 x Adapter
- 1 x CD Driver
- 1 x Manual>li>
Photos of ESCAM Cat QF300 Wireless IP Camera CCTV for Android and iOS 1/4 Inch CMOS
